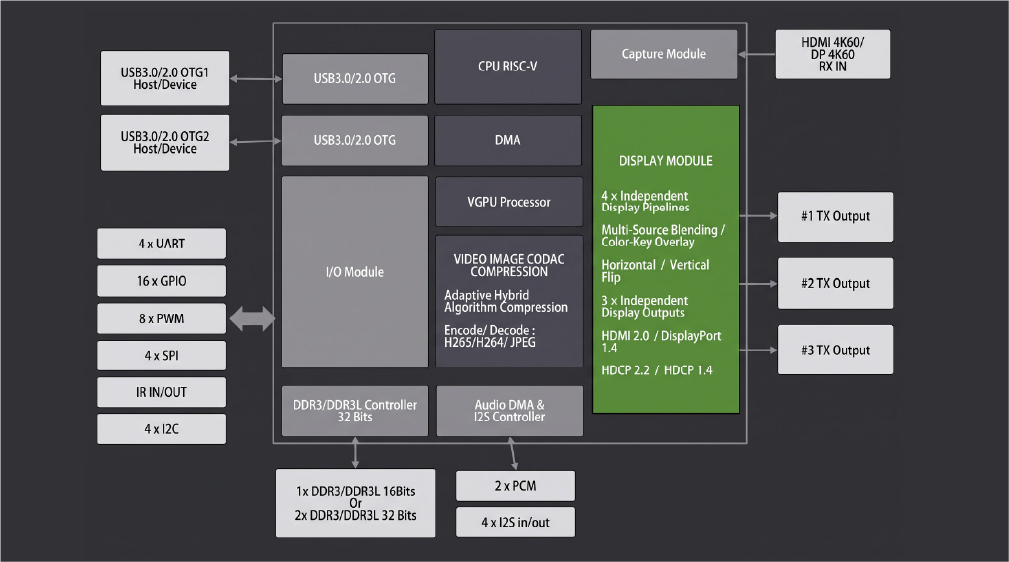

As the latest-generation member of the Trigger family, the T8-688 integrates high-performance USB graphics processing, multi-display processing, UHD video capture, embedded processing, memory control, and various multimedia codec and display interfaces into a single ASIC.

The T8-688 can use two USB 3.1 Gen 1 operations to achieve data rates up to 10 Gbps transferring. Its USB OTG architecture provides flexible USB Host and USB Device operation.

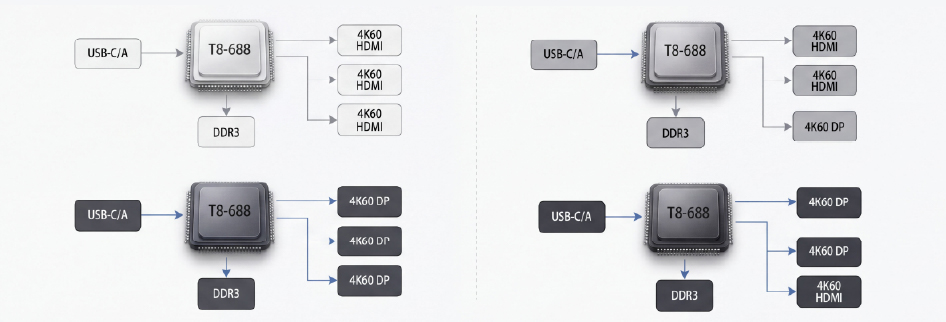

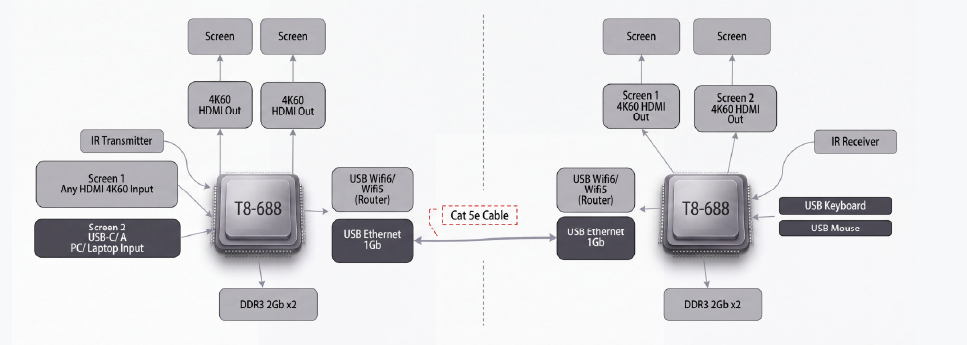

The T8-688 integrates three independent display pipelines, each capable of generating an independent display stream and driving a configurable HDMI 2.0 or DisplayPort 1.4 display output interface. Each display output supports resolutions up to UHD 3840 × 2160 at 60 Hz (4K60).

The T8-688 also integrates a UHD video capture engine with one configurable HDMI 2.0 or DisplayPort 1.4 video capture input interface, supporting video capture resolutions up to UHD 3840 × 2160 at 60 Hz.

A RISC-V multi-cores processor, and multiple peripheral interfaces are also integrated to reduce external component requirements and overall system complexity.

With its combination of MCT proprietary USB graphics technology and intellectual property, high-speed USB connectivity, three independent display pipelines, UHD video capture, embedded processing, and multimedia interfaces, the T8-688 enables a flexible single-chip platform for USB display solutions, UHD 4K display dongles, multi-display docking stations, video capture devices, video conferencing systems, KVM solutions, embedded display systems, industrial applications, and other USB-based graphics and multimedia products.
